VELSEN 535 SPECS & FEATURES
The Velsen 535 aluminium boat is a fast and maneuverable vessel designed for serious fishing and active recreation. It offers a perfect blend of comfort, reliability, and economy, delivering maximum performance even with a smaller engine.
Note: Optional features may be shown.
SPECIFICATIONS
| Length | 5.35 m |
| Beam | 1.96 m |
| Transom Height | 508 mm |
| Approximate Draft | 310 mm |
| Deadrise at Transom | 11° |
| Boat weight | 575 kg |
| Maximum outboard engine | 165 kg |
| Fully equipped boat weight (mLC) | 883 kg |
| Max. num. of persons | 4 people |
| Fuel Capacity | 75 L |
| Livewell | 68 L |
| Rod Storage | 4 |
| Certification category (CE) | C |
| Hull Material | Aluminium EN AW-5083 H111 |
| Hull bottom thickness | 3 mm |
| Hull side thickness | 3 mm |
| Buoyancy | Closed-cell PU foam |
| Maximum outboard engine power | 75 HP |
| Outboard shaft length | Long (L) |
STANDARD FEATURES & EQUIPMENT
FLOORING
- Interior finishing with Marideck vinyl flooring and marine carpet (USA).
ACCESSORIES
- Stainless steel mooring cleats – 4 pcs.
- Plastic cup holder – 2pcs.
Aluminum profile rail with T-slot for accessory mounting.
Osculati brand plastic locker latches.
VELSEN decals on the hull.
CONSOLE/INSTRUMENTATION
- Switch panel with illuminated buttons and function icons.
- 12V electrical socket.
- USB and Type-C electrical socket.

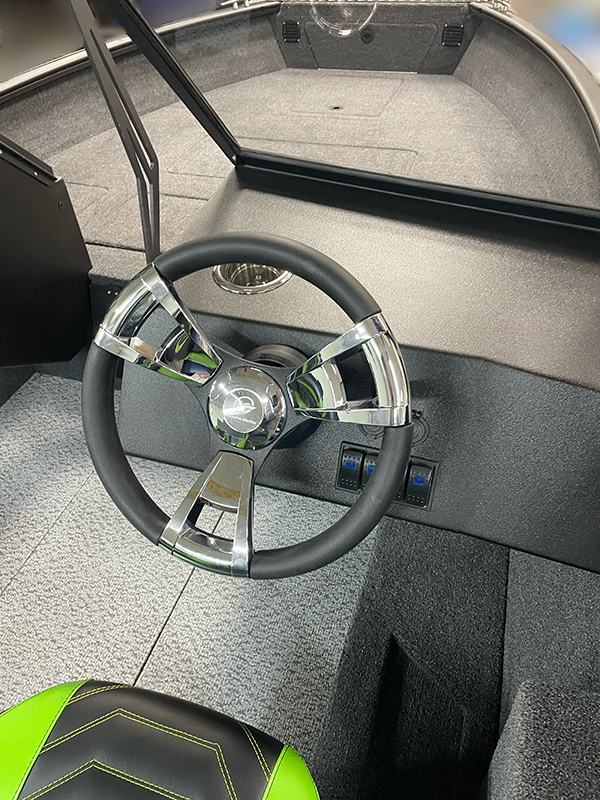

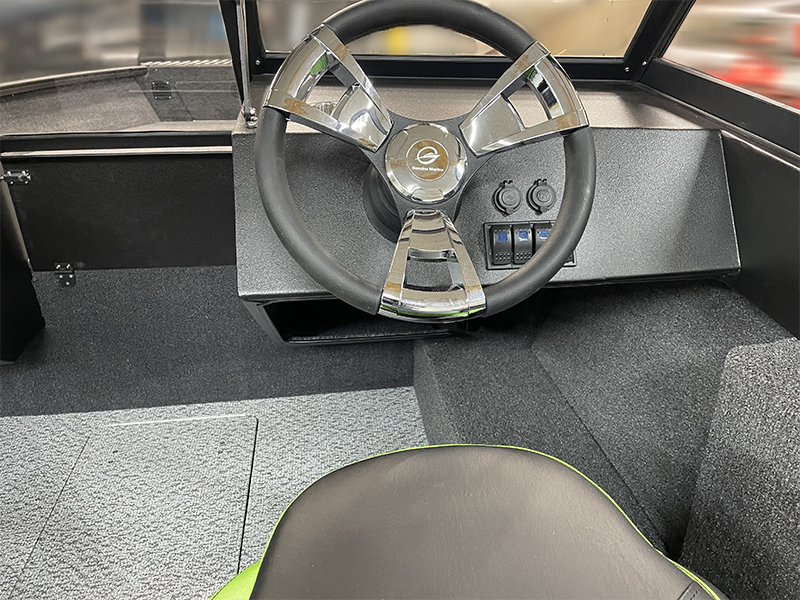

- Steering system: Mechanical steering.
- Lockable glove box on the console with a passenger grab handle below.

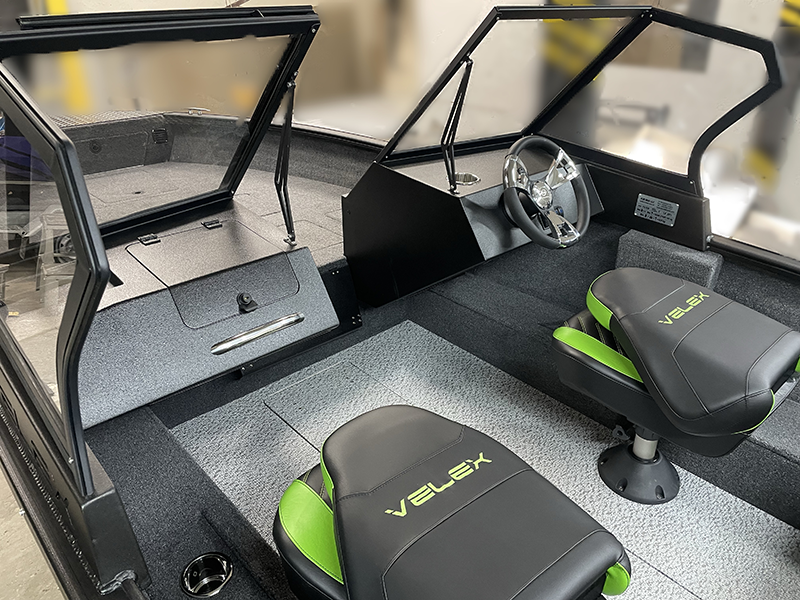

- Twin aluminum consoles with tempered glass windshields and a central gate.
EXTERIOR FEATURES
- Hull painting: top coated with Raptor (RAL 9004); side color of your choice.
- Fuel system: 60L tank, filler neck, fuel gauge
- Stainless steel foldable marine ladder
INTERIOR FEATURES
- Hidden piano hinges for added durability and watertightness.
LIVEWELLS/BAITWELLS
- Keep your catch or bait fresh and healthy with our durable 68-liter baitwell tank.
ROD STORAGE
- Cockpit locker for 4 spinning rods, up to 2.7 m in length.
SEATING

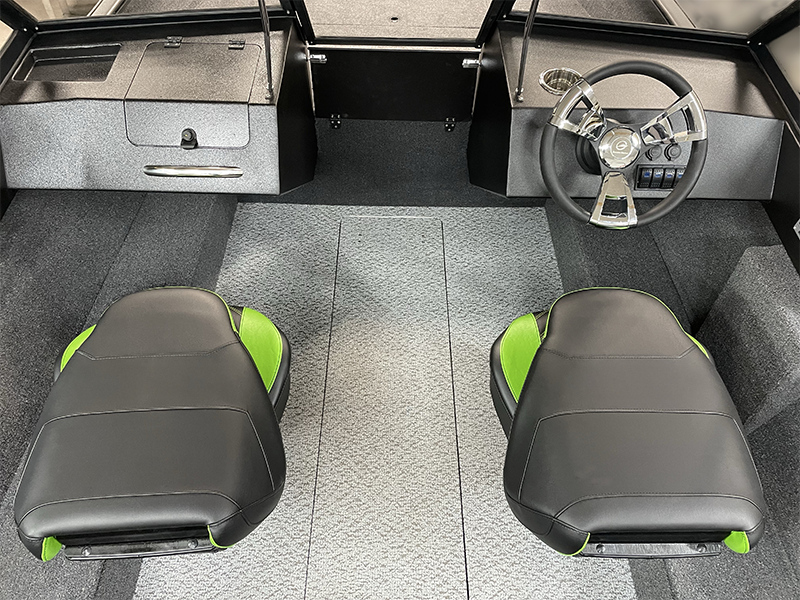

- Basic armchair – 2 pcs
- Plastic height chair post – 2 pcs.

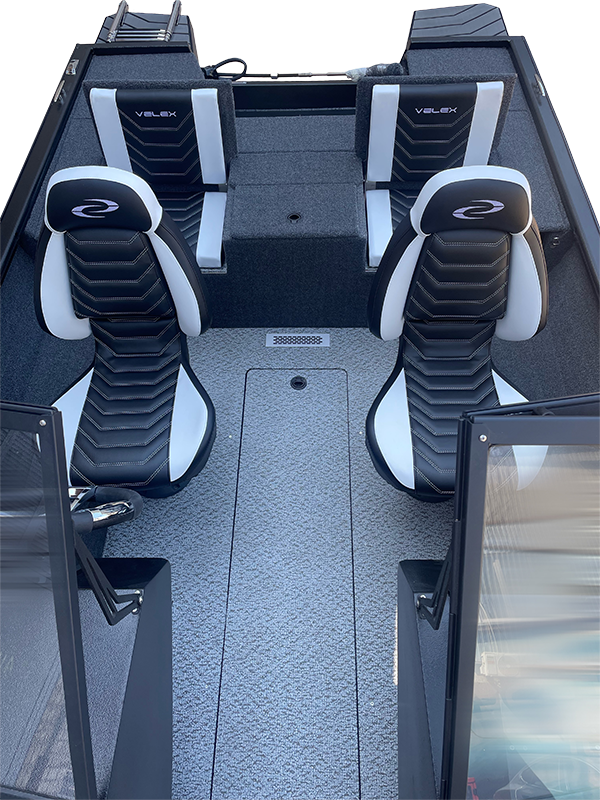

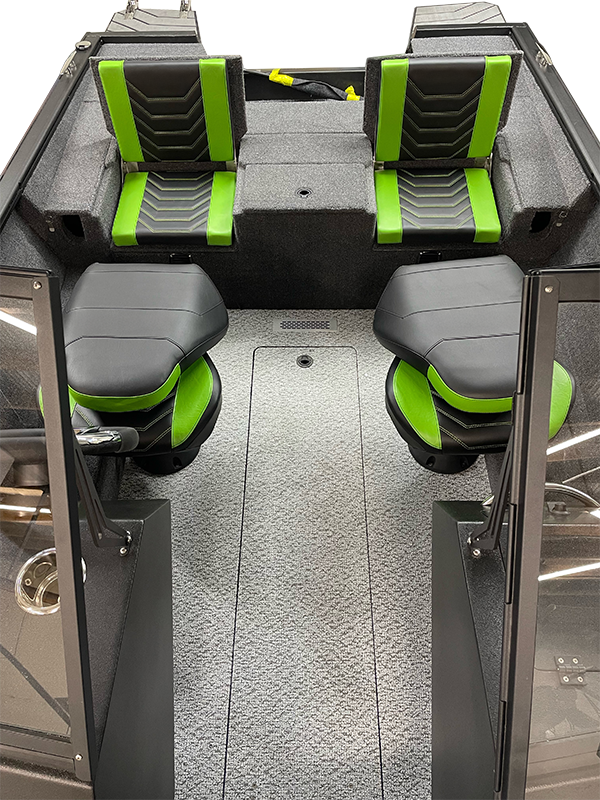

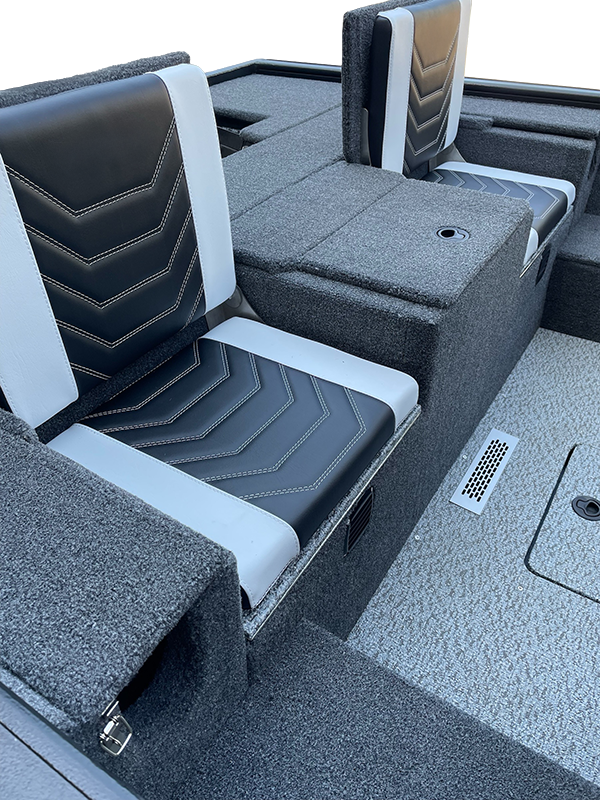

- Foldable seats in the stern, convertible into a fishing platform (2 pcs). Seats include padded marine-grade vinyl inserts.
- Available leather color options for seats
STORAGE

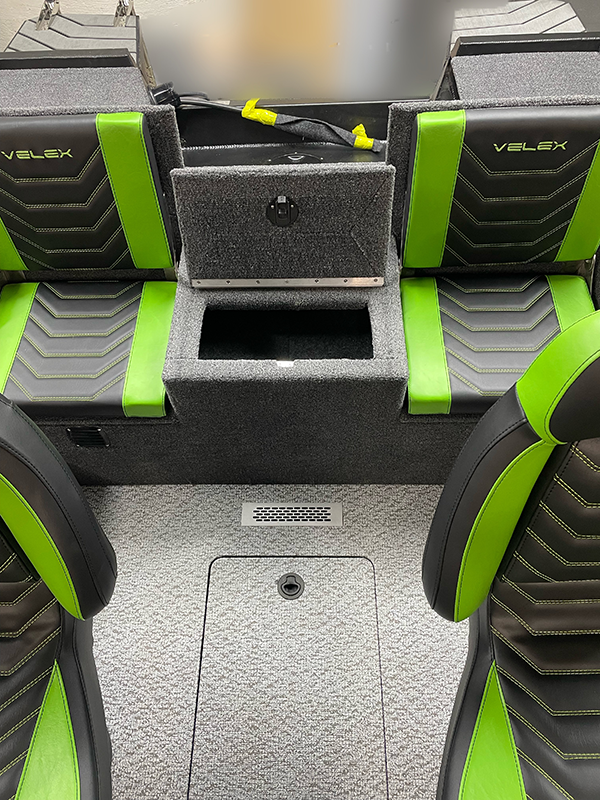

- Two storage compartments located under the two folding rear seats – additional space in the rear center to securely store and protect your gear.

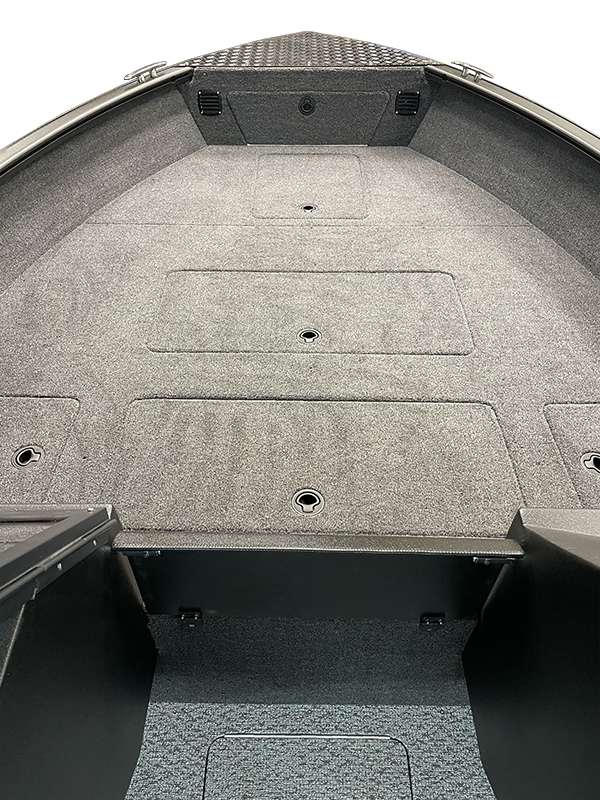

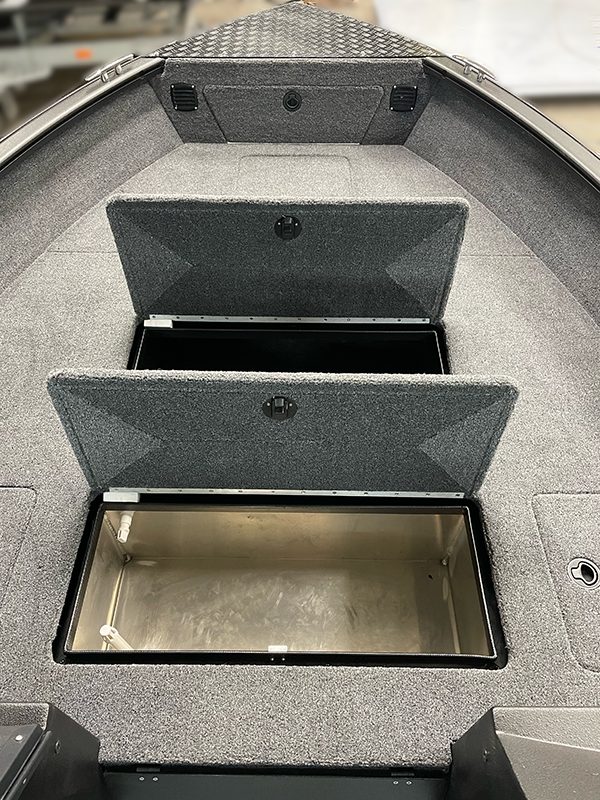

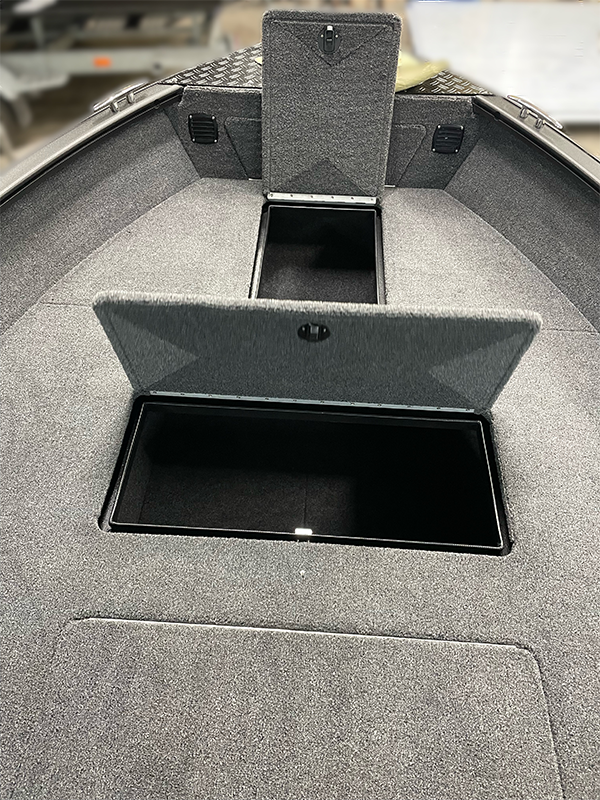

Large front deck with 4 waterproof storage lockers and baitwell tank – keep all your essentials safe, dry and within easy reach.
ELECTRICAL KIT
550 GPH electric bilge pump.
LED navigation lights.
Removable navigation light.
Electrical wiring with master battery switch.
Fuse block.
Optional Equipment (available upon request)
Bimini Tops & Covers
Boat cover for transportation with push-button fastening
- Bimini top – folding
- Full Bimini Enclosure – Complete Boat Cover
ACCESSORIES
Stainless steel pop-up cleats, size 6” (set of 4, replacement option)
Stainless steel “Osculati” locker latches (replacement option – all lockers)
Stainless steel cup holder
Plastic cup holder
- Mortise sound signal
CONSOLE/INSTRUMENTATION
- Steering system: Mechanical steering
- Captain’s side windshield wiper
EXTERIOR FEATURES
- Stern platforms
- Stainless steel retractable telescopic ladder with locking system, integrated into the stern platform.
INTERIOR FEATURES
- Removable tow pylon
- Washing kit
SEATING
Basic armchair.
Attwood armchair.
Aluminium height chair post.
Plastic height chair post.
High fisherman rack with “bicycle” seat.
Slider with swivel platform.
Seat Pedestal Base 2″.
- Seat Pedestal Base 2″ 3/8.
- Seat Pedestal Base Plastic.
- 360° rotating swivel platform (only for Suspension Seat Pedestal).
- Suspension Seat Pedestal (made from Steel).
- Suspension Seat Pedestal (made from Stainless Steel).
- Suspension Seat Pedestal (made from Aluminium).
STORAGE
- Replacing standard lockers with Marine carpet-lined finish (all lockers)
- Adding LED lighting in all lockers
- Spring-assisted locker lid supports.
ELECTRICAL KIT
- Additional 12V electrical socket – 50€
- Additional USB and Type-C electrical socket – 50€
TRAILER
- We specialize in high-quality trailers from TIKI and Respo, trusted brands across Europe for their durability, safety, and smart design.
Why Choose the Velsen 535 Aluminium Boat ?
ERGONOMICS & COMFORT
The Velsen 535 aluminium boat features seamless aluminium consoles designed based on years of fishing experience. Every part is ergonomically placed for ultimate convenience and control. Additionally, the increased bow deck area provides ample space, making it comfortable to fish and relax during your trips.
PERFORMANCE & EFFICIENCY
This model is engineered to be agile and efficient. The Velsen 535 aluminium boat creates maximum possibilities even when paired with a moderate engine. This ensures economical operation without sacrificing speed or fun, making it the ideal choice for active recreation on the water.
DURABILITY & SAFETY
We use only premium components from world-renowned brands. The hull is crafted from marine aluminium with absolutely no plywood, ensuring complete resistance to corrosion. Furthermore, buoyancy blocks made of two-component foam guarantee safety in any conditions, making the Velsen 535 aluminium boat a reliable partner for years.
STARTING AT
€14600*
PAYMENTS AS LOW AS
€262/MO*
Monthly payment assumes 7.49% APR and a $1,500 down payment with a 5-year term
LENGTH
5.35m
|
MAX. ENGINE
75 HP
|
SEATINGS
4
|
WEIGHT
575KG
WARRANTY
WARRANTY TRANSFER
Velsen’s warranty creates lasting value because it is fully transferable. Should you decide to sell your Velsen 535 aluminium boat, the remaining warranty coverage automatically follows the boat to its new owner. The coverage period does not restart but continues for the balance of the original term. This process requires no additional paperwork, ensuring that every Velsen boat maintains a strong resale value. For more details from the manufacturer, please visit the official Velsen website.
