VELSEN 545 SPECS & FEATURES

The Velsen 545 aluminium boat is a modern vessel created for those who value uncompromising quality and dynamics. It offers a new level of convenience, making it the ideal choice for both serious fishing and relaxing on the water with family or friends.

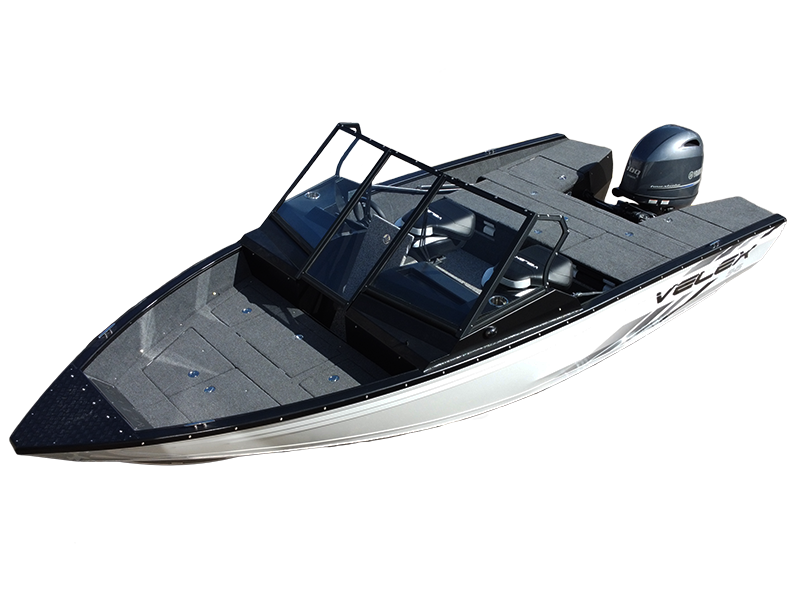

Velsen 545 aluminium boat
Velsen 545 Aluminium Fishing Boat Top View Layout

Note: Optional features may be shown.

SPECIFICATIONS
Length 5.42 m
Beam 2.23 m
Transom Height 508 mm
Approximate Draft 420 mm
Deadrise at Transom 14°
Boat weight 700 kg
Maximum outboard engine 258 kg
Fully equipped boat weight (mLC) 1107 kg
Max. num. of persons 4 people
Fuel Capacity 105 L
Livewell 74 L
Rod Storage 4+2
Certification category (CE) C
Hull Material Aluminium EN AW-5083 H111
Hull bottom thickness 3 mm
Hull side thickness 3 mm
Buoyancy Closed-cell PU foam
Maximum outboard engine power 115 HP
Outboard shaft length Long (L)
FLOORING
  • Interior finishing with Marideck vinyl flooring and marine carpet (USA).
Velsen light grey marine deck vinyl flooring material sample
Marideck vinyl floor
Velsen dark grey marine carpet material sample
Marine carpet (USA)
  • Stainless steel mooring cleats – 4 pcs.

  • Stainless steel “Osculati” locker latches.

  • Aluminum profile rail with T-slot for accessory mounting.

  • Stainless steel cup holder – 4 pcs.
  • VELSEN decals on the hull.
Stainless steel mooring cleat for Velsen aluminum boats
Stainless steel cleats
Osculati stainless steel deck locker lock on Velsen boat
"Osculati" locker latches
Velsen black aluminum T-slot railing for boat accessories
Rail with T-slot
Velsen stainless steel boat cup holder installed in carpeted surface
Stainless steel cup holder
Velsen boat decals and graphics for aluminum hulls
Velsen decals
  • Switch panel with illuminated buttons and function icons.
  • 12V electrical socket
  • USB and Type-C electrical socket.
  • Steering system: Mechanical steering.

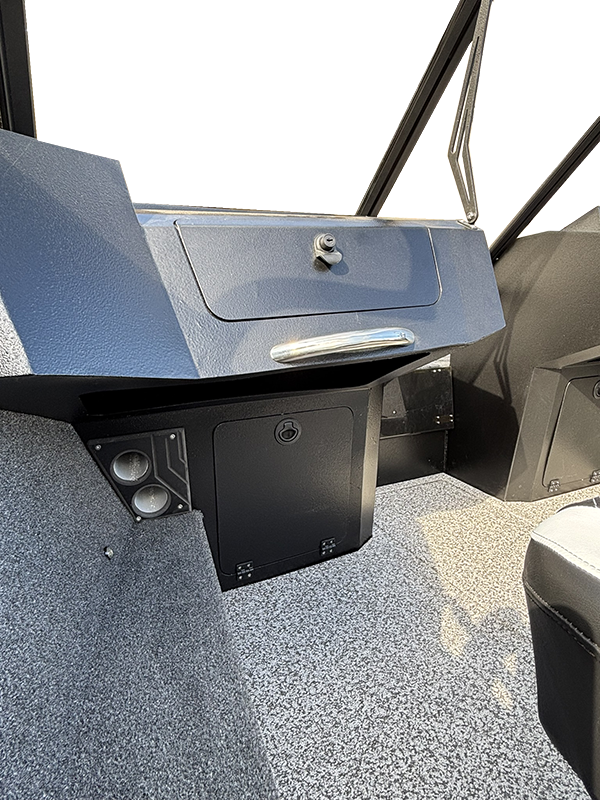

  • Lockable glove box on the console with a passenger grab handle below.
  • Twin aluminum consoles with tempered glass windshields and a central gate.
Velsen boat control switch panel with LED indicator buttons
Switch panel
Velsen 12V power socket for boats
12V socket
Velsen boat USB and Type-C charging port
USB Type-C socket
Velsen basic mechanical boat steering wheel
Mechanical Steering
Velsen 585 glove box with lockable storage compartment
Glove box
  • Hull painting: top coated with Raptor (RAL 9004); side color of your choice.
  • Fuel system: 80L tank, filler neck, fuel gauge.

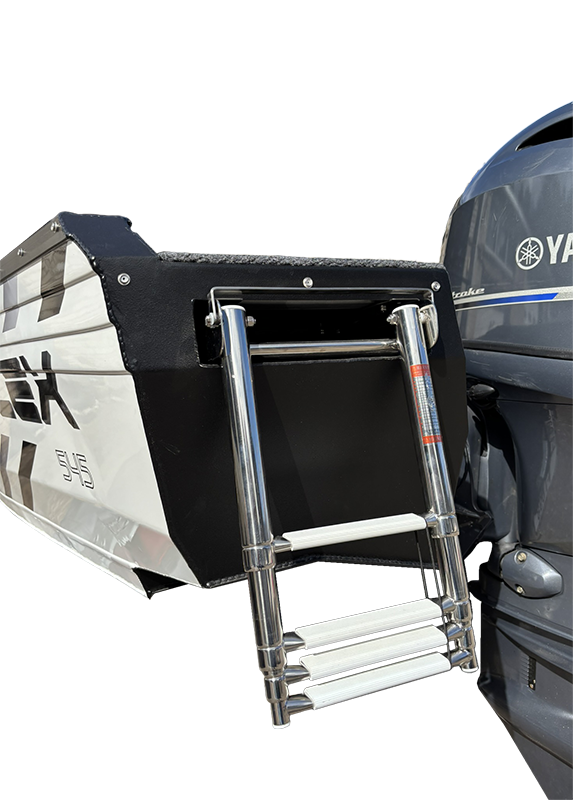

  • Stainless  steel foldable marine ladder.
Velsen boat side with black Raptor coating and silver aluminum hull
Velsen black marine fuel tank cap with textured surface
Filler neck
Velsen digital fuel gauge with LED display for boats and vehicles
Fuel cauge
Velsen foldable stainless steel boarding ladder for boats
Foldable ladder
  • Hidden piano hinges for added durability and watertightness.
Velsen stainless steel piano hinge installed on carpeted boat deck

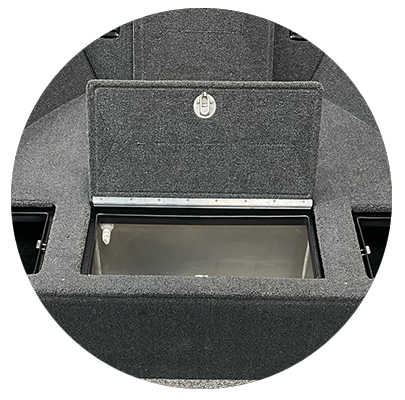

  • Keep your catch or bait fresh and healthy with our durable 74-liter baitwell tank.
Velsen boat livewell storage compartment with carpeted lid and metal latch

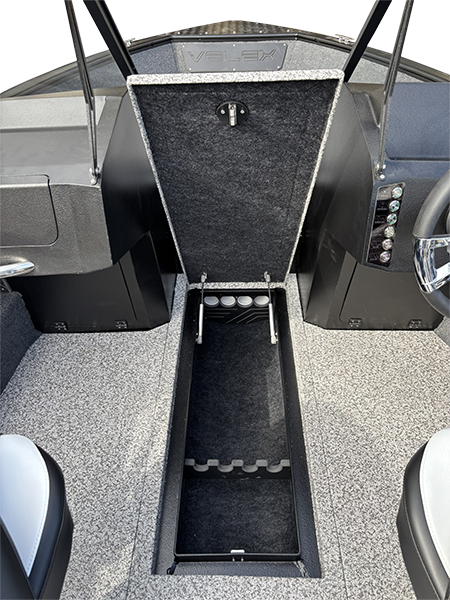

  • Cockpit locker for 4 spinning rods, up to 2.7 m in length, plus additional storage on the port side for 2 more rods.
Velsen 535 fishing rod locker storage compartment
  • Basic folding seats – 2 pcs.
  • Aluminium height chair post – 2 pcs.

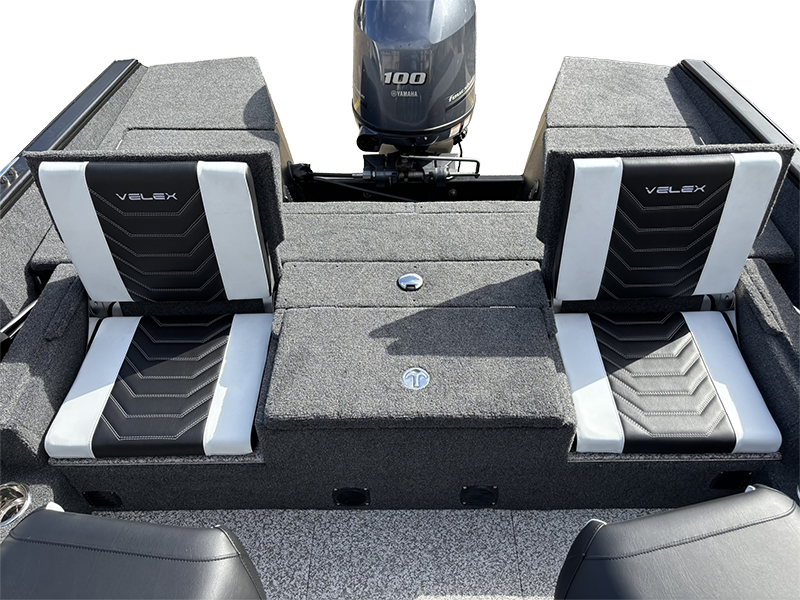

  • Foldable seats in the stern, convertible into a fishing platform (2 pcs). Seats include padded marine-grade vinyl inserts.
  • Available leather color options for seats.
Velsen Basic armchair in black and white with ergonomic high back design
Basic Armchair
Adjustable boat seat slider with swivel platform base
Aluminium height chair post
Velsen foldable boat seat with marine-grade upholstery
Foldable back seat
Marine DH boat seat upholstery leather color options
Seat leather color palette
  • Hidden storage compartment behind the rear seats for the foldable bimini top, with support tubes concealed inside the stern. Bimini top not included in the standard equipment.
  • Two storage compartments located under the two folding rear seats – extra space for storing personal items and boating accessories.
  • Two latching storage compartments located under the driver and passenger consoles.

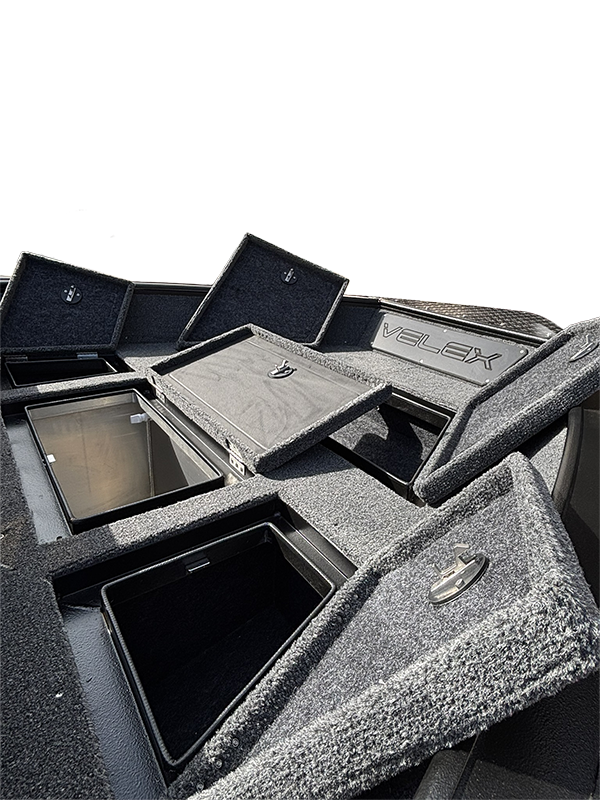

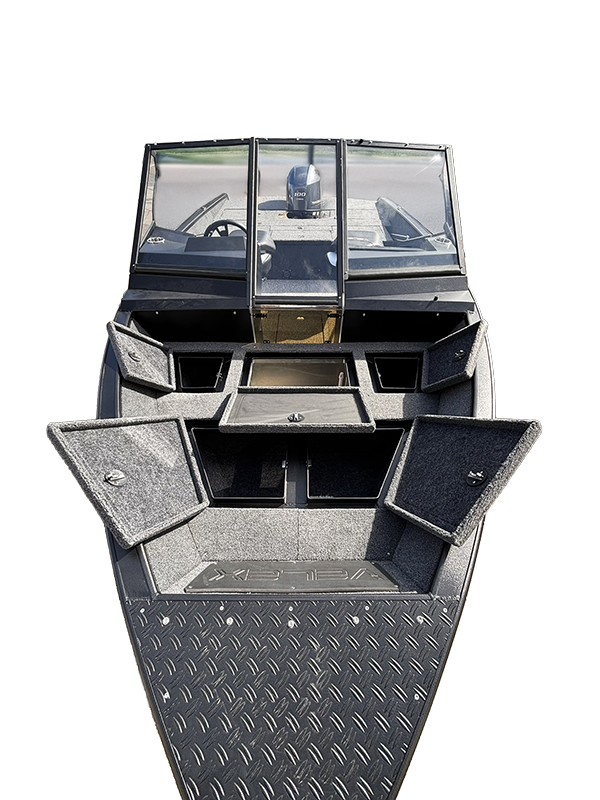

  • Large front deck with 4 waterproof storage lockers and baitwell tank – keep all your essentials safe, dry and within easy reach.

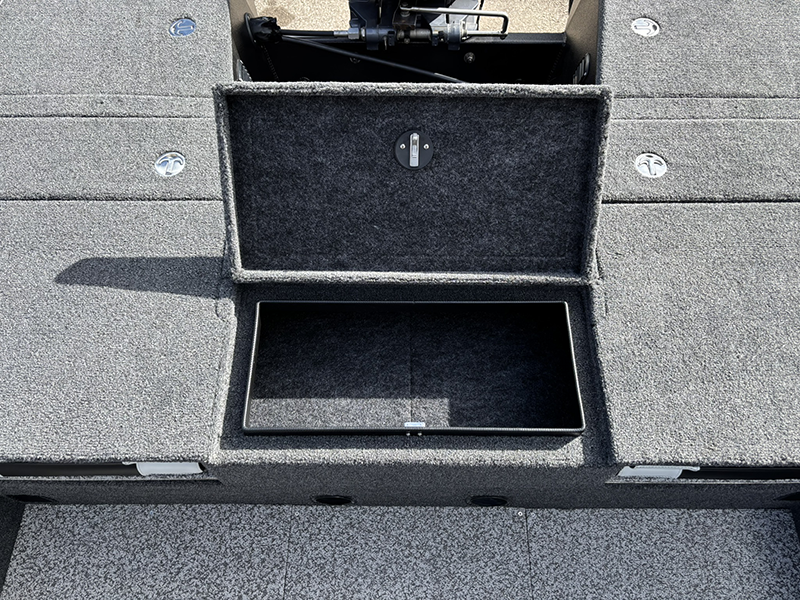

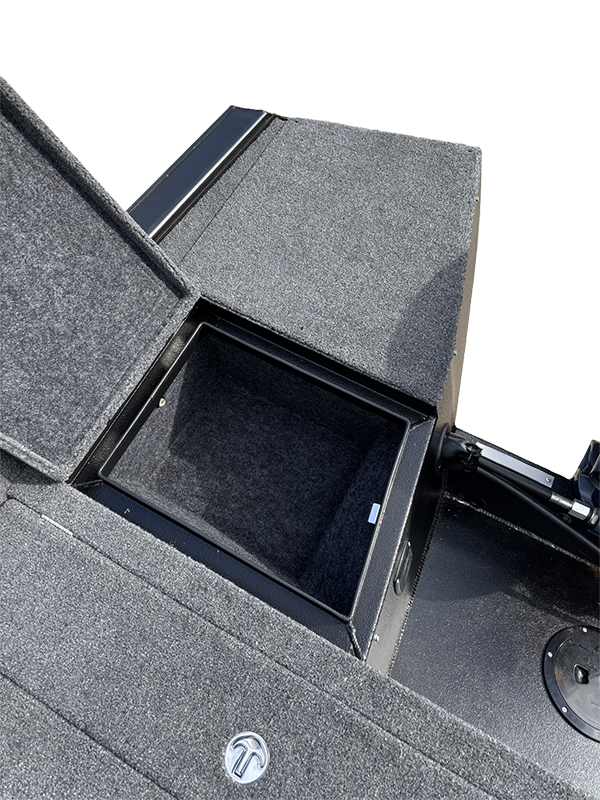

  • Rear storage with 3 waterproof lockers – additional space at the back to securely store and protect your gear.

Velsen hidden rear storage compartment for foldable bimini top
Bimini storage
Velsen 535 rear storage compartments for fishing boat
Under-seat storage
Velsen under console storage compartments
Under console storage

  • 550 GPH electric bilge pump.

  • LED navigation lights.

  • Removable navigation light.

  • Electrical wiring with master battery switch.

  • Fuse block.

LED boat navigation lights green and red for port and starboard sides
LED navigation lights
Velsen removable boat navigation light with stainless steel pole and clear lens
Removable navigation light
Velsen marine battery switch with white housing and red rotary knob
Master battery switch
FB12 marine fuse box with 12 circuits and LED indicators for boats
Fuse block
Bimini Tops & Covers

  • Boat cover for transportation with push-button fastening

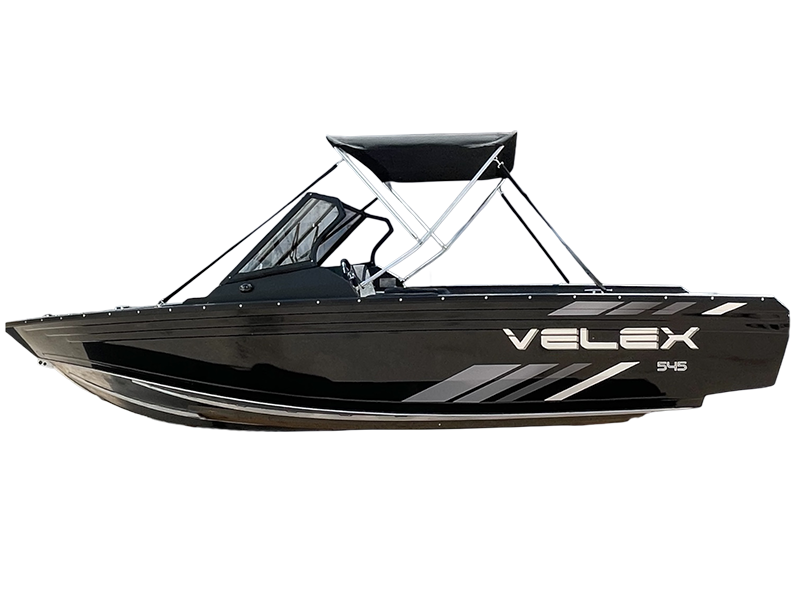

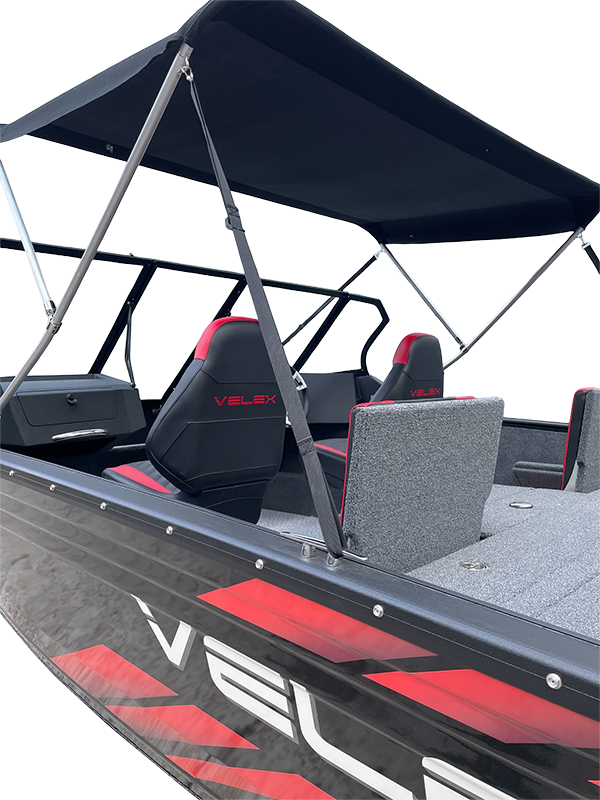

  • Bimini top – folding

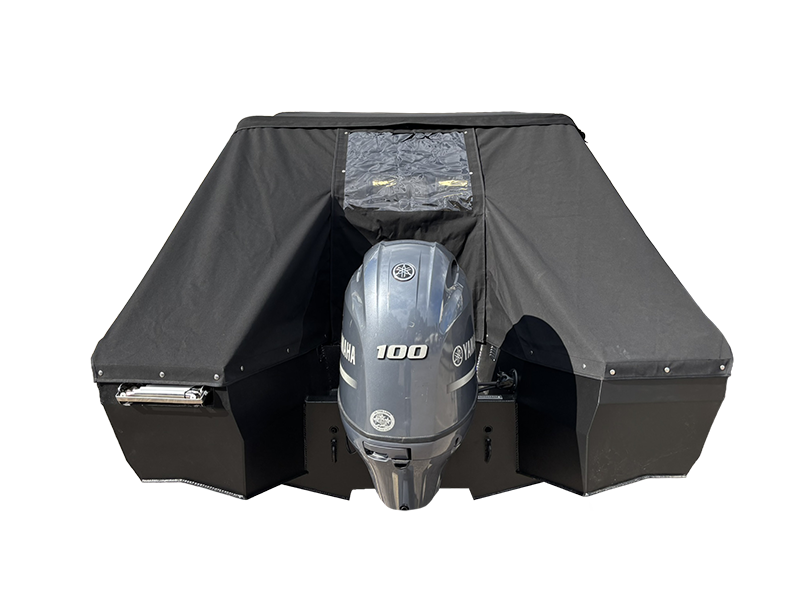

  • Full Bimini Enclosure – Complete Boat Cover
Velsen aluminum boat with custom fitted protective cover
Boat cover

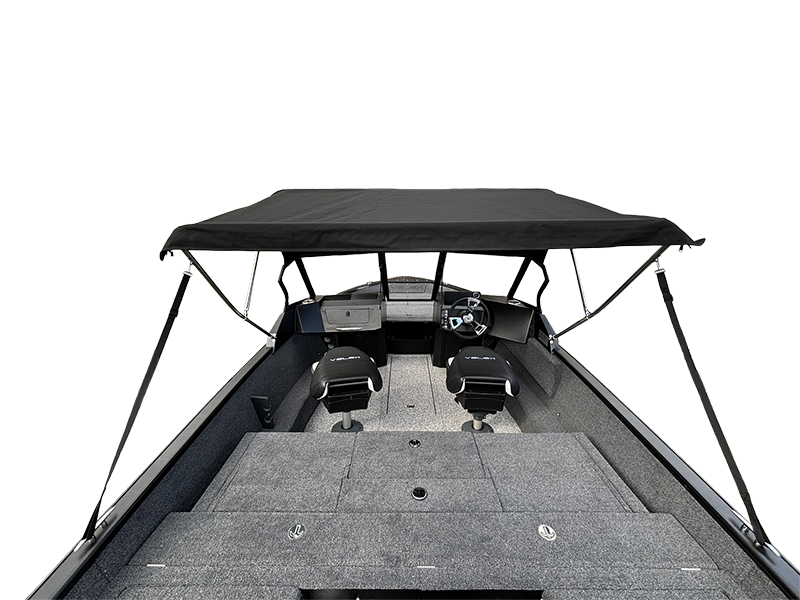

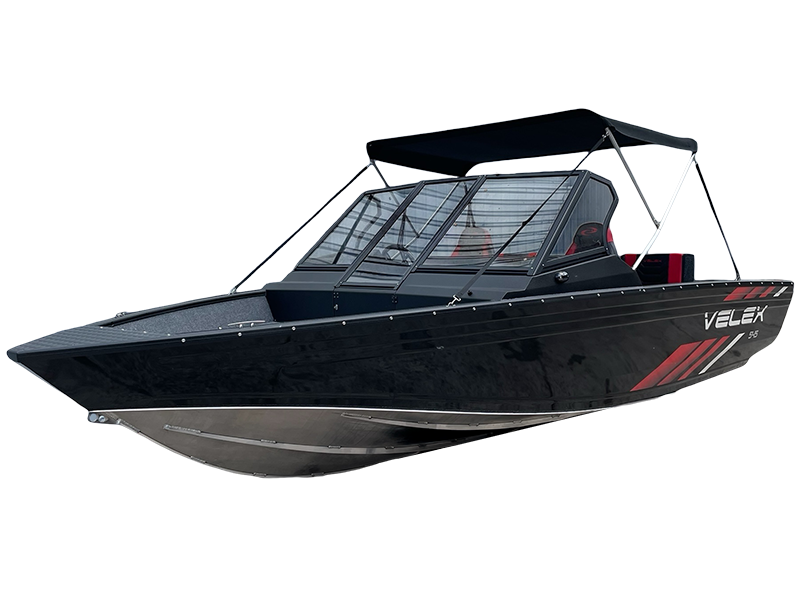

Velsen folding bimini top boat canopy with aluminum frame
Folding Bimini top

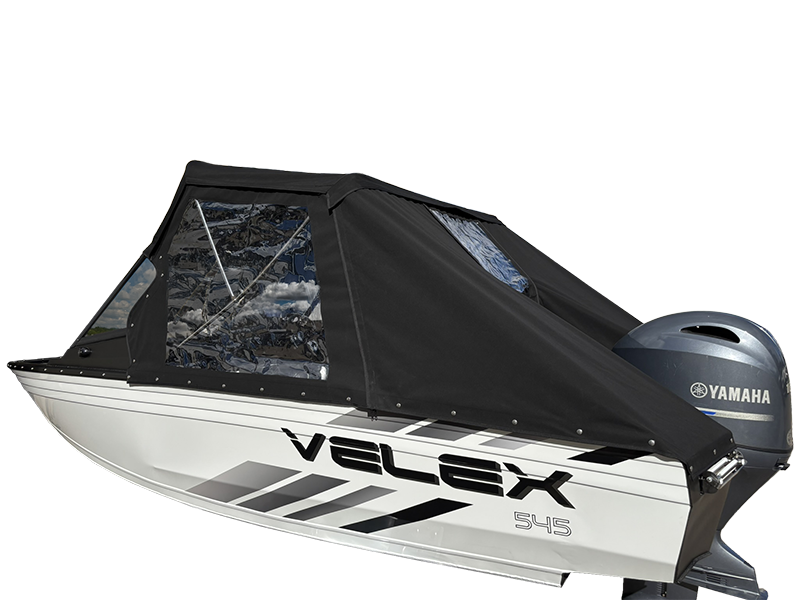

Velsen aluminum boat with full bimini enclosure cover
Full Bimini Enclosure

  • Stainless steel pop-up cleats, size 6” (set of 4, replacement option)

  • Stainless steel cup holder

  • Plastic cup holder

  • Mortise sound signal
Velsen stainless steel pop-up cleats for boats
Stainless steel cleats
Velsen stainless steel boat cup holder installed in carpeted surface
Stainless steel cup holder
Velsen black plastic boat cup holder insert
Plastic cup holder
Mortise mounted marine sound signal horn for boats, black housing
Mortise sound signal
  • Steering system: Mechanical steering
  • Captain’s side windshield wiper.
Velsen optional mechanical steering wheel with chrome accents
Mechanical steering
Velsen boat windshield wiper system
Windshield wiper
  • Stainless  steel retractable telescopic ladder with locking system, integrated into the hull
Velsen retractable telescopic stainless steel ladder for boats
Telescoping Ladder
  • Removable tow pylon
  • Washing kit
Removable stainless steel tow pylon for boats, ideal for water sports and towing
Removable tow pylon
Boat washing kit with coiled hose and spray nozzle on carpeted deck
Washing kit

  • Basic armchair.

  • Attwood armchair.

  • Aluminium height chair post.

  • Plastic height chair post.

  • High fisherman rack with “bicycle” seat.

  • Slider with swivel platform.

  • Seat Pedestal Base 2″.

  • Seat Pedestal Base 2″ 3/8.
  • Seat Pedestal Base Plastic.
  • 360° rotating swivel platform (only for Suspension Seat Pedestal).
  • Suspension Seat Pedestal (made from Steel).
  • Suspension Seat Pedestal (made from Stainless Steel).
  • Suspension Seat Pedestal (made from Aluminium).
  • Removable foredeck cushions on both port and starboard sides.
Velsen Basic armchair in black and white with ergonomic high back design
Basic Armchair
Velsen Basic armchair closed in black and white marine-grade upholstery
Basic Armchair closed
Black and white Velsen racing-style gaming chair with ergonomic design
Attwood chair
Velsen adjustable high fisherman seat with black and white padded bicycle-style cushion
"Bicycle" seat
Adjustable boat seat slider with swivel platform base
Aluminium height chair post
Fixed height 425mm boat seat pedestal with plastic base and aluminum post
Plastic height chair post
Boat seat slider with swivel platform for adjustable seating position
Slider with swivel platform
2-inch aluminum boat seat pedestal base mounted on deck
Seat Pedestal Base 2"
2 3/8 inch aluminum seat pedestal base installed on boat deck
Seat Pedestal Base 2" 3/8
Plastic boat seat pedestal base
Seat Pedestal Base Plastic
360-degree swivel seat base for boat chairs
360° swivel platform
Steel suspension seat pedestal with red spring for boat seats
S.S.P Steel
Stainless steel suspension seat pedestal with integrated shock-absorbing spring for boats
S.S.P Stainless Steel
Aluminum suspension seat pedestal with spring shock absorber for boats
S.S.P Aluminium
Velsen boat removable foredeck cushions on port and starboard sides
Removable cushions
  • Replacing standard lockers with Marine carpet-lined finish (all lockers)
  • Adding LED lighting in all lockers
  • Spring-assisted locker lid supports.
LED lighting installed inside boat storage locker for improved visibility
Lighting in all lockers
Boat locker interior with durable marine-grade carpet lining
Carpet in the lockers
Velsen boat storage compartments with spring-assisted locker lids
Spring locker lid supports
  • Additional 12V electrical socket – 50€
  • Additional USB and Type-C electrical socket – 50€
Velsen 12V power socket for boats
12V socket
Velsen boat USB and Type-C charging port
USB Type-C socket
  • We specialize in high-quality trailers from TIKI and Respo, trusted brands across Europe for their durability, safety, and smart design.
Respo 700V451T160 A galvanized boat trailer with orange adjustable rollers
Respo 700V451T160
TIKI BX600-L A galvanized boat trailer with adjustable rollers
TIKI BX600-L

Why Choose the Velsen 545 Aluminium Boat ?

SMART ERGONOMICS

Convenience is thought out to the smallest detail. In the Velsen 545 aluminium boat, you do not need to dismantle the dodger top. Simply open the special locker, and the canopy neatly lowers inside. This smart design creates a clutter-free deck, offering a new level of technological sophistication and comfort from the very first minute.

DYNAMICS & PRECISION

Engineers have equipped the Velsen 545 aluminium boat with a special tunnel for echo sounder transducers. This eliminates signal shadowing, guaranteeing an accurate display of the bottom relief. Additionally, the increased deadrise ensures a soft and confident passage through waves, providing dynamic performance even in difficult conditions.

DURABILITY & SAFETY

Safety meets comfort. The special flotation pads significantly increase the stability of the boat in statics, making it perfect for fishing or parking. Like all our models, the Velsen 545 aluminium boat is built for durability, ensuring a safe and stable experience for everyone on board.

STARTING AT

€17500*

PAYMENTS AS LOW AS

€320/MO*

Monthly payment assumes 7.49% APR and a $1,500 down payment with a 5-year term

LENGTH
5.42m

|

MAX. ENGINE
115HP

|

SEATINGS
4

|

WEIGHT
700KG

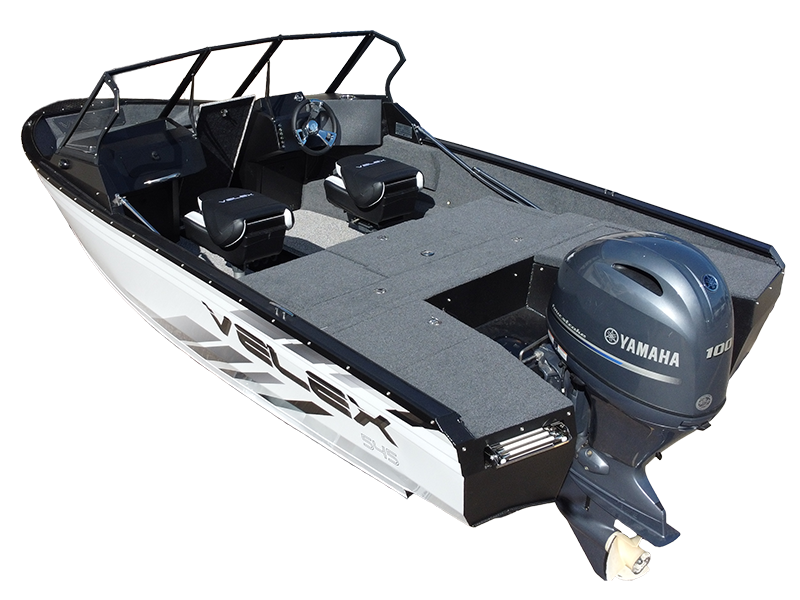

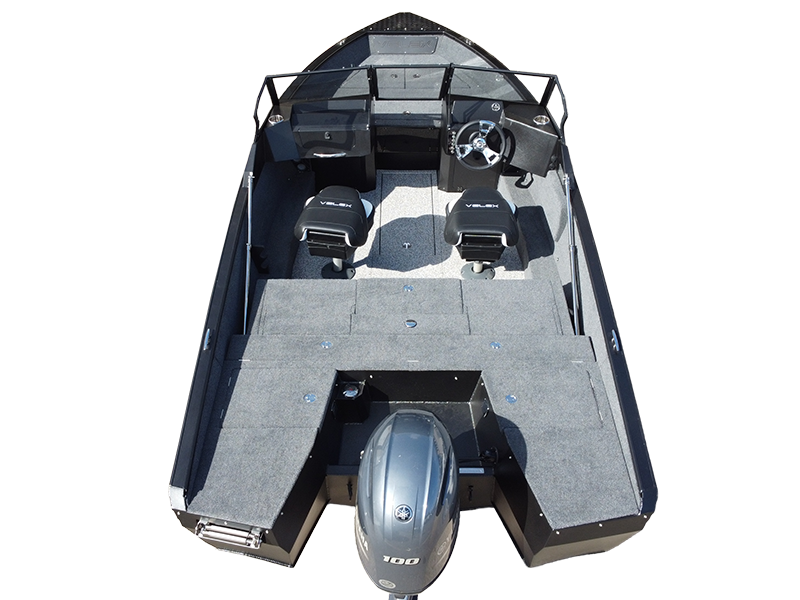

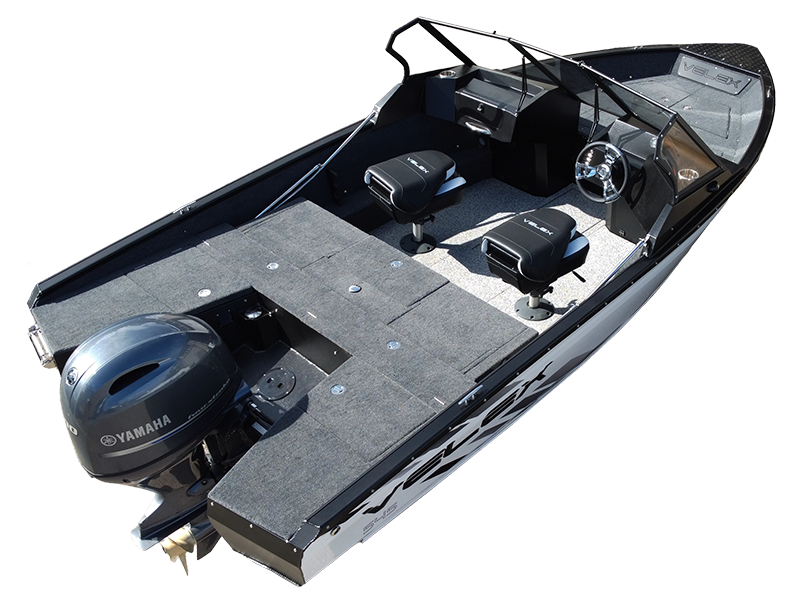

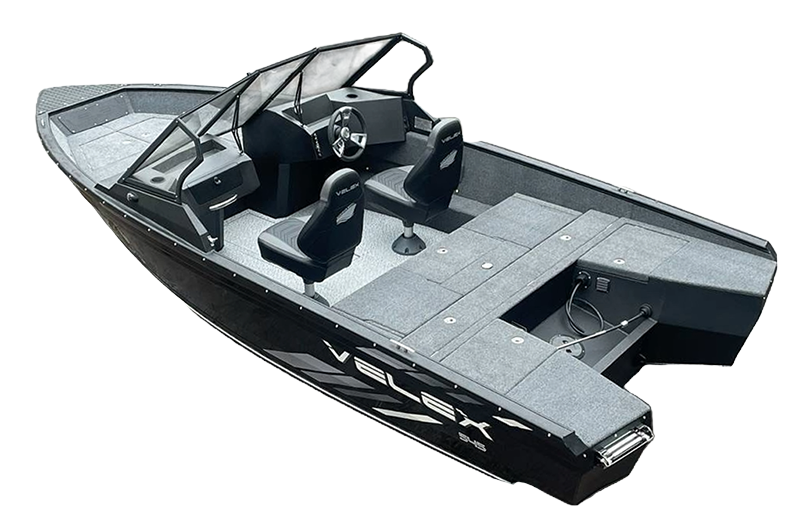

GALLERY OF VELSEN 545 ALUMINIUM BOAT

WARRANTY

At Velsen, we are committed to building boats that deliver outstanding durability, safety, and value. To honour that commitment, every Velsen 545 aluminium boat comes with a comprehensive warranty: the hull is covered for ten years, onboard equipment is covered for two years, and paint is covered for one year. Our warranty reflects the confidence we have in our craftsmanship and long-term reliability. Please note that if an engine exceeding the maximum recommended power is installed, the warranty becomes void.

WARRANTY TRANSFER

Velsen’s warranty creates lasting value because it is fully transferable. Should you decide to sell your Velsen 545 aluminium boat, the remaining warranty coverage automatically follows the boat to its new owner. The coverage period does not restart but continues for the balance of the original term. This process requires no additional paperwork, ensuring that every Velsen boat maintains a strong resale value. For more details from the manufacturer, please visit the official Velsen website.
